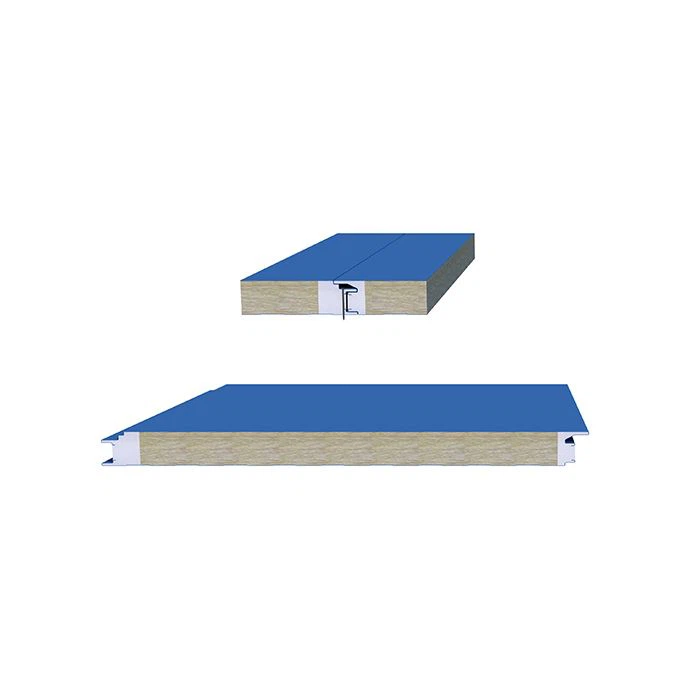

Pob zeb wool sab nrauv phab ntsa vaj huam sib luag nrog PIR sab sealing:
Nws yog tsim rau tej yaam num uas yuav tsum tau siab rau kev tiv thaiv hluav taws. Nws cov pob zeb wool fiber ntau yog perpendicular mus rau lub vaj huam sib luag hlau, thiab high-density sawb pob zeb wool yog staggered raws qhov ntev ntawm lub rooj tsavxwm los xyuas kom meej tias cov phab ntsa vaj huam sib luag muaj peev xwm zoo. Thaum muab tag nrho cov kev ua si rau cov khoom tshwj xeeb ntawm cov pob zeb wool core cov ntaub ntawv hais txog kev tiv thaiv hluav taws, kev txuag hluav taws xob, lub suab nqus thiab suab rwb thaiv tsev, qhov kawg PIR polyurethane ob sab sab khaws cov khoom zoo ntawm polyurethane plasticity, sealing, siab zog thiab tsis nqus dej. , yog li ntawd qhov zoo ntawm polyurethane thiab pob zeb ntaub plaub tau ua tiav tag nrho.
Nta ntawm sab nrauv phab ntsa vaj huam sib luag:
PNS Hom Pob Zeb wool tsev sab nrauv phab ntsa vaj huam sib luag (seamless) nrog PIR / PUR ob-sided sealing, muaj kev ua tau zoo hluav taws kub (fireproof theem A), siv rau kab rov tav lossis ntsug installation ntawm sab nrauv phab ntsa, kev sib koom ua ke tsim, zoo tiv thaiv dej nag los ntawm ntsug mounting panels, Nws muaj siab compressive zog, txo qhov kub thiab txias txuas hniav, nce cua nruj.
Khoom npe | Rockwool sab nrauv phab ntsa vaj huam sib luag nrog PUR / PIR ob chav sealing |
Qauv | WL500-1000/RW |
Thickness ntawm panels | 50/75/80/100/120/150/200 hli |
Thermal conductivity ntawm Rockwool | λ Tsawg dua lossis sib npaug rau 0.038 w/(m. k) |
Cov ntawv hlau (04-0.8mm) | 1) Xim prepainted galvanized steel ntawv 2) Aluminium ntawv ci, 3) Stainless hlau ntawv, 4) Aluminium Magnesium Manganese daim ntawv |
Cov khoom siv tseem ceeb | Pob zeb wool plus Polyurethane |
Hydrophobic tus nqi | 98 feem pua |
Cov kua nplaum sib txuas | Bonding zog Ntau dua los yog sib npaug rau 0.06MPa |
Gluing txoj kev | Tsis siv neeg kua nplaum txau |
Qhov ntom ntom: cov khoom siv tseem ceeb | Rockwool: 80kg/m³ -120kg/m³, |
ceev: sealing sab | PU: 40-42 kg/m³; PIR: 45-50 KG/M3 |
Qib hluav taws kub | A qib |
Xim ntawm steel phaj | raws li xav tau |
Sab nrauv / Sab hauv deg profile | Square yoj, tiaj tus, embossment, me yoj, dav ribbed |
Siv dav dav | 500-1000 hli (Regular 1000mm) |
Ntev ntawm vaj huam sib luag | Max.11.8m (Customized) |
Txoj kev teeb tsa | 1. kab rov tav; 2. ntsug |
Kev sib txuas | PU ntug tus nplaig thiab zawj nrog zais ntsia hlau |
Tso cai ntsug load thiab kub hloov coefficient ntawm PNS 'sab nrauv phab ntsa vaj huam sib luag (tso cai deformation f Tsawg dua los yog sib npaug L / 240).
Thickness ntawm pane | Thaum tshav kub kub conductivity | Qhov hnyav | Load peev |
| ||||
MM | W/M2K | KG /㎡ | P=KN/㎡ | 0.6 | 0.8 | 1.0 | 1.2 | 1.5 |
50 | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 |
75 | 0.53 | 18.37 | L(m) | 4.9 | 4.22 | 3.73 | 3.35 | 2.91 |
100 | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 |
150 | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 |
Kab hlau rhuav sab nrauv phab ntsa vaj huam sib luag cov khoom siv / cov khoom siv rwb thaiv tsev - pob zeb wool qhia:
Pob zeb wool khoom yog ua los ntawm exquisite basalt raws li lub ntsiab raw khoom, melted nyob rau hauv high kub, ua los ntawm inorganic fibers los ntawm high-ceev centrifugal cov cuab yeej, thiab ces ntxiv nrog tshwj xeeb binders thiab plua plav-pov thawj roj los hloov cov fiber ntau txheej txheem los ntawm cov khoom tshwj xeeb. , thiab thaum kawg kho thiab zoo li tus los ua lub teeb yuag thermal rwb thaiv tsev cov ntaub ntawv. Ua tau raws li kev tiv thaiv hluav taws ntawm Qib A txwv tsis pub, nws yog qhov kev xaiv zoo tshaj plaws rau cov khoom siv hluav taws kub-resistant sandwich panels. CE tau ntawv pov thawj, hlau ntsej muag pob zeb wool sab nrauv phab ntsa vaj huam sib luag (50-150mm) raws li A2-sl, d0 kev tiv thaiv hluav taws.
