Khoom Taw Qhia:

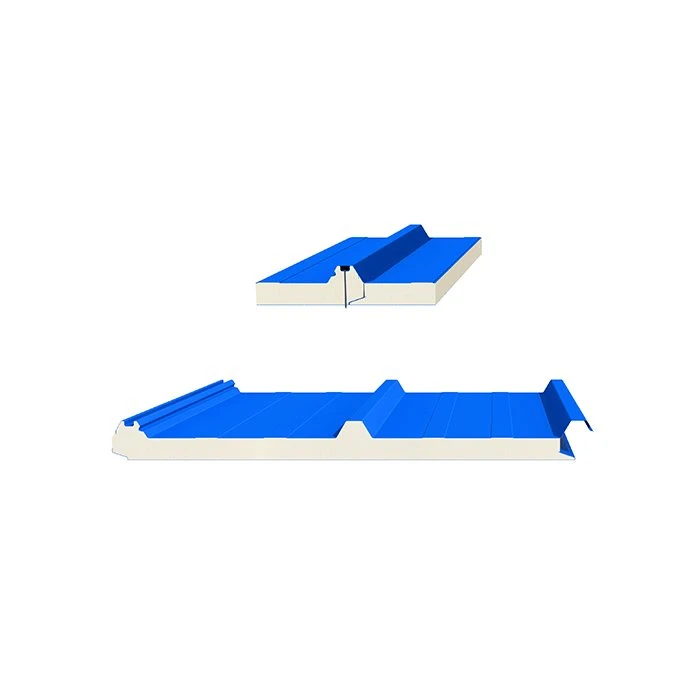

Polyisocyanurate Sandwich Ru Tsev Vaj Huam Sib Luag tseem hu ua anti-xeb sandwich vaj huam sib luag, polyurethane nyuaj ua npuas ncauj rwb thaiv tsev vaj huam sib luag, polyurethane composite vaj huam sib luag, PIR vaj huam sib luag. Nws yog polyurethane rigid ua npuas ncauj raws li ib tug thermal rwb thaiv tsev txheej ntawm bimetallic nto, monometallic nto, non-metallic nto composite phaj, nws yog ib tug ntau yam ntawm kev siv, muaj peev xwm muaj zog-npaum lub tsev cov ntaub ntawv, tab sis kuj yog ib hom tshiab ntawm lub zog- txuag phaj.
Khoom nta:
1. Kev txuag hluav taws xob & rwb thaiv tsev: Cov nyhuv rwb thaiv tsev ntawm tib lub thickness yog 2 npaug ntawm EPS board.
2. Nplaim hluav taws kub thiab hluav taws kub: qib combustion mus txog B1 / B2.
3. Airtight & suab rwb thaiv tsev: zoo suab haum, nws muaj kev txo cov suab nrov sab nraud.
4. Waterproof thiab rustproof: loj span, ceev ceev, zoo waterproof nyhuv; Cov ntsia hlau yog muab zais thiab tsis yooj yim rau xeb.
Khoom zoo:
Lub vaj huam sib luag polyurethane Sandwich vaj huam sib luag ntawm Henan Panels Industry Co., Ltd yog kho los ntawm cov ntsia hlau zais, thiab cov vaj huam sib luag tau sib tshooj nruj nreem thiab tsis muaj cov ntsia hlau txuas tuaj yeem pom. Qhov tshwj xeeb waterproof zawj tsim tau zoo tiv thaiv dej los nag thiab zam qhov tshwm sim ntawm tus choj txias.
Txais 39mm yoj crest / tav, nce saum npoo lub zog, yooj yim rau ntws, txo cov daus daus thiab cua load los ntawm 170 feem pua.
Super nplaim taws retardant: lub thermal conductivity yog 0.023w/(m•k), uas ua kom zoo thermal rwb thaiv tsev nyhuv. Hauv kev xyaum, qhov no ua tau zoo tswj cov cua sov ntawm lub tsev, nrog cov txiaj ntsig kev lag luam loj.

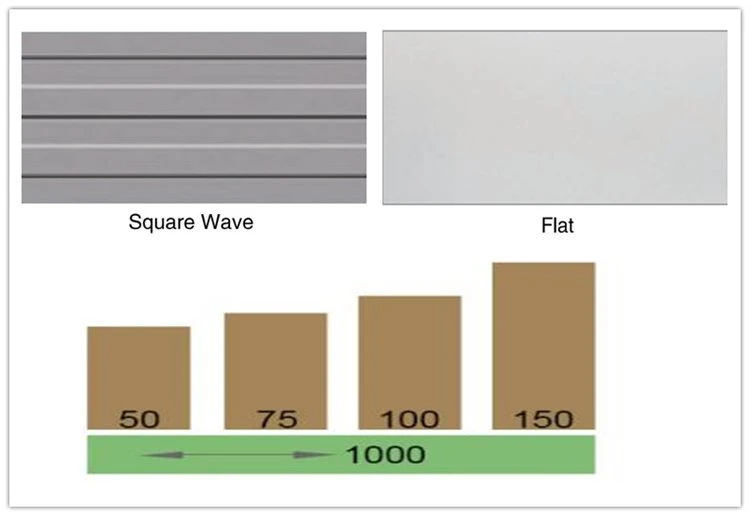

Panels 's nto profile thiab thickness:
Sandwich Roof Panels muaj ob daim ntawv hlau sab nrauv (Color-coated steel phaj, stainless hlau, aluminium phaj lossis lwm yam) nrog stabilizing core ntawm rwb thaiv tsev sandwiched nruab nrab ntawm lawv.Qhov txheej txheej ntawm daim ntawv tuaj yeem tiaj tus (microribbed / plat / square yoj / nyem), corrugated lossis ib qho kev tsim tshwj xeeb.Cov khoom siv insulating tuaj yeem yog Polyurethane (PUF), Poly-isocyanurate (PIR), Rockwool lossis glasswool.
Tso cai ntsug load thiab tshav kub hloov coefficient ntawm PNS Lub Tuam Txhab 'Polyurethane Sandwich Roof Panels (tso cai deformation f Tsawg dua lossis sib npaug L / 240):
Thickness ntawm vaj huam sib luag | Thaum tshav kub kub hloov coefficient | Qhov hnyav (Kg / ㎡) | Load peev |
| |||||
{{0}}.5/0.4mm | {{0}}.6/0.6mm | ||||||||
mm | W/㎡K | KG / M2 | KG / M2 | P=KN/㎡ | 0.60 | 0.80 | 10 | 1.20 | 1.50 |
50 | 0.31 | 9.94 | 12.50 | L(m) | 3.59 | 3.17 | 2.85 | 2.61 | 2.33 |
75 | 0.21 | 10.99 | 13.70 | 4.64 | 4.07 | 3.66 | 3.34 | 2.96 | |
100 | 0.19 | 11.69 | 14.50 | 5.57 | 4.88 | 4.38 | 3.99 | 3.53 | |
120 | 0.16 | 12.39 | 15.30 | 6.28 | 5.49 | 4.92 | 4.48 | 3.97 | |
Nco tseg:Cov lus saum toj no suav nrog lub hauv paus ntawm PU 'density {{0}}kg/m³, sab nrauv steel ntawv / puab steel ntawv: 0.5mm/0.4mm; 0.6 hli / 0.6mm)
Specifications ntawm Sandwich Roof Panels:
Khoom npe | PIR Sandwich Vaj Huam Sib Luag |
Sab nrauv Hlau Phaj | Thickness: 0 4-0.8 hli |
Txheej: PE / SMP / HDP / PVDF | |
Sab hauv Hlau Phaj | Thickness: 0 4-0.8 hli |
Txheej: PE / SMP / HDP / PVDF | |
Vaj Huam Sib Luag Thickness | 50/60/75/80/100/150 hli |
Cov khoom siv tseem ceeb | PIR (Polyisocyanurate) |
Siv dav dav | 1000 hli |
Ntev | Customized |
Thermal conductivity | Tsawg dua los yog sib npaug rau 0.023 w/m·k |
Qhov ntom | PIR: 43-48kg/m³ |
Xim | Ib txwm xim: dawb grey, nyiaj grey, hiav txwv-xiav, crimson los yog Customized |
Cim npe nrov: pir sandwich vaj huam sib luag
