Khoom Taw Qhia:
PNS hom pob zeb wool ru tsev panels nrog PIR / PUR ob-sided sealing (zaum rau tes) muaj kev ua tau zoo tua hluav taws. Lawv txuas nrog cov ntsia hlau zais. Qhov kev ncua deb ntawm cov ntsia hlau tuaj yeem hloov kho los ntawm 250 mus rau 1000mm, uas yog tshwj xeeb tshaj yog haum rau typhoon cheeb tsam. Lub pob zeb wool sandwich panels yog nruj nreem lapped. Qhov tshwj xeeb waterproof zawj tsim tuaj yeem tiv thaiv kev nkag mus ntawm cov dej nag thiab zam qhov tshwm sim ntawm tus choj txias. Lub 39mm crest qhov siab zoo heev txhim kho cov kabmob muaj peev xwm ntawm lub ru tsev vaj huam sib luag. Thaum ua kom ntseeg tau cov thermal rwb thaiv tsev ntawm lub tsev, nws tuaj yeem txo cov nqi tsim kho ntawm cov neeg siv khoom, thiab lub ru tsev txoj kab nqes tuaj yeem qis li 3 feem pua.
Pob zeb wool sandwich panels 'ntws profile thiab thickness, zais ntsia thawv sib koom:
Parameters ntawm pob zeb wool ru tsev panels:
Thickness: 50/75/80/100/150 hli. (raws li tus neeg siv khoom xav tau)
Siv dav dav: 1000mm
Ntev: Customized (raws li qhov yuav tsum tau ua thiab kev thauj mus los)
Cov khoom siv tseem ceeb: pob zeb wool ntxiv rau PU sealing sab
Qhov ceev: 80-120kg/m³
Xim: tuaj yeem xaiv tau raws li cov haujlwm xav tau.
Tso cai ntsug load thiab kub hloov coefficient ntawm PNS Lub Tuam Txhab 'PU ru tsev Panels (tso cai deformation f Tsawg dua lossis sib npaug rau L / 240):
Thickness ntawm vaj huam sib luag | Thaum tshav kub kub hloov coefficient | Qhov hnyav | Load peev |
| ||||
mm | W/M2 . K | KG / M2 | P=KN/㎡ | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
50 | 0.75 | 15.75 | L(m) | 3.78 | 3.31 | 2.98 | 2.71 | 2.41 |
75 | 0.53 | 18.68 | 4.83 | 4.21 | 3.76 | 3.42 | 3.01 | |
100 | 0.41 | 21.62 | 5.77 | 5.02 | 4.47 | 4.04 | 3.55 | |
150 | 0.31 | 27.51 | 7.53 | 6.54 | 5.82 | 5.26 | 4.61 | |
Nco tseg:Cov lus saum toj no yog xam raws li lub hauv paus ntawm pob zeb wool hnyav ntawm 120kg / m³, 0.6mm txheej steel ntawv thiab 0.5mm sab hauv steel ntawv .)
Specification:
Khoom npe | pob zeb wool sandwich panels |
Sab nrauv Hlau Phaj | Thickness: {{0}} 4-/0.8mm |
Txheej: PVDF / HDP / SMP / PE | |
Sab hauv Hlau Phaj | Thickness: {{0}}.4/0.5/0.6mm |
Txheej: SMP / PE | |
Thickness ntawm Sandwich Vaj Huam Sib Luag | 50/60/75/80/100/150 hli |
Cov khoom siv tseem ceeb | Rockwool plus PU/PIR |
Siv dav dav | 500-1000 hli |
Ntev | Customized |
Thermal conductivity | Tsawg dua los yog sib npaug rau 0.037 w/m·k |
Qhov ntom | Rockwool:100-120kg/m³; |
Nta ntawm pob zeb wool sandwich panels:
●Txoj kev kho yog ruaj khov thiab tsim nyog: lub pob zeb wool ru tsev vaj huam sib luag yog tsau nrog tshwj xeeb M6 tus kheej tapping screws thiab purlins, uas tuaj yeem tiv thaiv lub zog sab nraud xws li cua daj cua dub. Tus kheej-tapping ntsia hlau yog teem rau ntawm txoj hauj lwm crest nyob rau saum npoo ntawm lub ru tsev vaj huam sib luag, thiab txais ib tug tshwj xeeb waterproof qauv kom tsis txhob muaj zog cov ntsiab lus ntawm waterproofing.
● Lub voj voog luv luv: Txij li tsis tas yuav tsum muaj kev ua haujlwm thib ob ntawm qhov chaw, nws tuaj yeem tsis tsuas yog ua kom qhov chaw nyob ib puag ncig huv si, tsis muaj kev cuam tshuam rau kev ua tiav ntawm lwm cov txheej txheem, tab sis kuj txo qis lub voj voog ntawm lub rooj tsavxwm. Qhov nruab nrab nruab nrab nruab nrab ntawm txhua hnub ntawm pob zeb wool sandwich panels ncav cuag 600. ~ 800㎡.
● Kev tiv thaiv khawb: Thaum lub sij hawm tsim cov pob zeb wool sandwich panels, polyethylene self-adhesive tiv thaiv zaj duab xis tuaj yeem muab tso rau ntawm qhov chaw kom tsis txhob khawb los yog tawg ntawm cov phaj hlau thaum thauj thiab teeb tsa.
Cov teb uas siv tau:
Pob zeb wool sandwich panels yog dav siv nyob rau hauv lub ru tsev ntawm steel qauv industrial nroj tsuag, rhiav thiab mobile tsev thiab lwm yam.

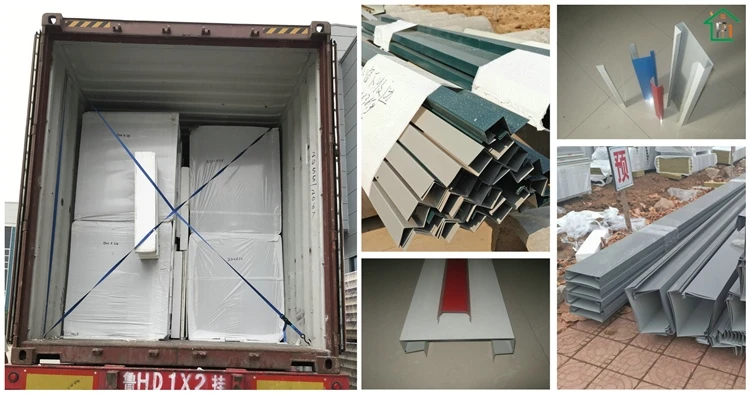

Flashing thiab accessories rau installation sandwich panels ntawm steel qauv:
Cov khoom siv ntau yam ntawm cov txheej txheem sab nrauv phab ntsa thiab lub ru tsev ua lub luag haujlwm tseem ceeb hauv kev ua kom zoo nkauj thiab kev sib koom ua ke ntawm tag nrho cov txheej txheem sab nrauv ntawm phab ntsa thiab lub ru tsev, nrog rau cov dej tsis zoo, tsis muaj dej tsis zoo, cov ntaub ntawv pov thawj, airtight thiab thermal rwb thaiv tsev. kev ua haujlwm ntawm qhov system. Henan Panos Industrial Priority Company tshwj xeeb hauv kev tsim thiab tsim khoom ntawm ntau yam khoom siv tshwj xeeb, hloov mus rau ntau lub tsev sib txawv, feem ntau ntawm cov khoom siv hauv tsev yog prefabricated hauv lub Hoobkas, thiab qee cov khoom siv uas tsis yooj yim rau kev thauj mus los kuj tuaj yeem siv tau los ntawm lub tuam txhab muab kev kos duab thiab kev txhawb nqa, yooj yim los ua rau ntawm qhov chaw tsim kho.
Cim npe nrov: pob zeb wool sandwich vaj huam sib luag
